  • Select/Maximizer
  • Load-Loc
  • Spud Cover
  • Grain Carts
  • Enviro Carts I
Select LogoMax logo

Farm

Side Roll Semi

SELECT FARM or SEMI: The "Original" Side-rolling tarp system with a precise fit.
MAXIMIZER FARM or SEMI: Has added width to the fabric to accommodate heaped loads.



Tension Control Rear EndCapRidgepole



PROVEN TENSION CONTROL

- Extension springs along with beveled pulleys on both ends of the roll-tube apply constant and uniform pressure

REMOVEABLE REAR END-CAP ON FARM MODELS

- End-cap is designed to enable full function of the tailgate.

RIDGEPOLE

- The ridgepole sewn into the tarp fabric is standard on all farm models and is optional for semi trailer units.



Swivel CrankCranksStd tarp stop



- Swivel crank handle allows for easy rolling of the tarp system,,,,,,,... Flip Release - Snap in style crank handle holders are used to hold the crank in the locked position



- Semi units can have a, front or rear crank that are either short or long depending on trailer requirements

- All units come with standard bolt on style tarp stops. Optional flip release tarp stops are available in 3" or 6" offset

OPTIONS

- 19 oz. tarp fabric in 16 colors

- 22 oz tarp fabric in 4 colors

Standard or reverse roll (Standard roll locks closed on the drivers side)

Re-inforced over cross-members

Fibreglass ridgepole in tarp fabric for added support - Semi's only

Flip Release Tarp Stops

Electric MotorWireless remote

ELECTRIC OPTIONS

A sealed electric motor, with a cover to shield it fromm the elements, is attached to an aluminum pivot arm used to rotate the roll-tube to open and close the tarp assembly.

The motor is operated by a rocker switch (from your cab or a WIRELESS REMOTE with a signal for up to 150 feet.

Available for all SELECTor MAXIMIZER side-roll tarp systems

LoadLoc logo



Load Loc



LL TensionLL centreLL hood

Tension Control
- Tension control apparatus is mostly hidden from the elements inside the roll tube
- Uses a non-stretch rope attached to a spring



Centre Rod
- Centre rod is sewn into the tarp fabric for added support
End Caps / Hoods
- End-caps are made from .081 Aluminum
- The rear end-cap is designed to allow full operation of the tailgate with end cap installed

LLlockLL crankLL cross members

Locking System
- A swivel crank handle allows for easy rolling of the tarp system
- A snap in crank handle holder is used to hold the crank in the locked position



Cross Members/ Hoops
- Are formed from 1" galvanized tube
- Are removable to accomodate water tanks, bales, etc.

Spud CoverSoud Cover2

Available with ROUND or FLAT Aluminum end-caps



GC round hoodGC flat hood



GC bevelled pulley

Extension springs along with bevelled pulleys on both ends of the roll tube apply constannt and uniform presure



GC ridgepoleGCridgepole2

2 ridgepoles are sewn into the tarp fabric on the flat hood style
The round hood style incorporates a centre rod in the tarp fabric along with a strap on either side if the centre rod

GC crankGC tarp stops

A swivel crank handle allows for easy rolling of the tarp fabric.
Snap in style crank handle holders are used to hold crank in locked position
Bolt on tarp stops are standard on all models
OPTIONS
Re-inforced fabric on cross members
Flip release tarp stops
22 oz fabric is available in 4 colors
This page is coming soon.
  • Ultra Flip
  • Econo Flip
  • Dura Flip
  • Gravel Guard
  • Side Kick
"ULTRA - FLIP TARP"



Ultra Flip

Ultra Crank assemblyUltra Lock Assemblyrear lock

The Ultra-Flip tarp system contains all the features of the Econo-Flip tarp system plus the following:

1. Hydro Chain, Chain Drive
2. Aluminum front Wind Deflector
3. Rear Lock Assembly



ECONO and ULTRA-FLIP TARP OPTIONS:



TOP MOUNTED CRANK SYSTEM

- Fastens directly to the roll tube end.

- Has similar ratchet safety system as bottom crank system that does not require roller chain.

-Five types of fabrics - Neoprene ( black ), 22 oz Vinyl (red, white, blue, black) Mesh (red, blue, green, black) Asphalt(tan only) .19 oz Vinyl (16 colors)

- Roller Chain - Stainless Steel or Hydro





Pivot Arm ElbowFT Elbow

PIVOT ARM ELBOW UPGRADE is available to reduce the risk of loader interference

Elbow styleFT Dual PA

DUAL PIVOT ARM TENSION CONTROL SYSTEM
Conforms the tarp to the load shape, reducing billowing of the tarp fabric
ELECTRIC UPGRADES

CD FlipsDirect Drive

.Chain Drive Model....................................................................Direct Drive Model
These two models of electric drives can either be a 12V or 24V motor depending on your existing electrical system. These options allow operations
from inside your cab
"ECONO" - FLIP TARP



Econo Flip



  1. Chain driven crank provides positive traction to reduce operating time.
  2. Crank handle rotates allowing the assembly to fit against the box wall.
  3. Ratchet safety system prevents the crank handle from rotating freely while opening the tarp.
  4. Plated crank assembmly components.
  5. Includes standard roller chain.
  6. Heavy-Duty helical torsion springs on both sides to provide equal resistance and tension when opening and closing the tarp system.
PLEASE SEE THE ULTRA - FLIP TAB FOR MORE OPTIONS
"DURA"-FLIP TARP



Dura Flip

FEATURES

FD winddeflectorDF Alum Arm

An aluminum checker plate wind deflector comes standard on all DURA-FLIP systems. Forged aluminum elbows together with the extruded aluminum arms create superior strength and corrosion resistance.

A plated Lower chain driven crank assembly provides positive traction to reduce operating time.

Aluminum arms are stronger than steel and are the most durable on the market.

An enclosed Helical Torsion Spring is attached to the aluminum arm on bothe sides of the trailer providing equal resistance and tension during operation.

Fabric available are: 19 oz. Vinyl (16colors), 22 oz. vinyl ( red,white, blue, black), Ashalt (tan), Neoprene (Black), Mesh (Red Green Blue, Black)

OPTIONAL ELECTRIC DRIVE

A direct drive 12V or 24V motor, depending on your exiating electrical system) is offered as an option.

The Direct Drive system can include an optional lower chain drive crank assembly for back up.

The Electric sytetem can be operated by using a rotary switch or wireless remote.

DF Cover

GG logo



GG Open

GG Closed

GG bowsGG frontGG Safety Latches

- No tie downs, which means no wasted time.

- Bows and tarp are self-contained and move together

- Standard bow height is 12". This enables the tarp to be stored clear of heaped loads and remains stored until further needed.

- The tarp fabric is secured to the bows at 30" centres.

- The rear tension adjustment is simple and easy to use.

- A 1/4" steel aircraft cable is used with pulleys to open and close the tarpaulin system.

- A PVC slider is mounted on the underside od each end of the tarp bows to reduce friction.

- Specially designed lock clips are used to secure tarp fabric assembly to the trailer wall to prevent billowing.



GG CrankGGelectric

- A specially designed 12 position crank assembly secures handle during operation...............................................Electric Chain Drive (shown ) or optional belt drive available

- Gravel Guard Systems are available for trailers lengths up to 48 feet



OPTIONS

- 18"rise tarp bows

- A selection of 5 fabrics (Vinyl (19 or 22 oz.), Mesh, Neoprene, Asphalt

- Sprocket drive ( using nickel plated or stainless steel chain

- Aluminum front end-cap/hood

- Seimi-waterproof and 100% waterproof models

- Electric, chain drive or belt drive

SK top leftSK Top Right

SkK logo

SK Bot Left

Easy & Simple
Tarp rolls under top of trailer for easy dumping
Set collars to raise tarp above heaped load
Reliable, sealed motor with cast gear box for durability
Multi position spring tension
Light weight
Strongest roll tube on the market



Side Kick main

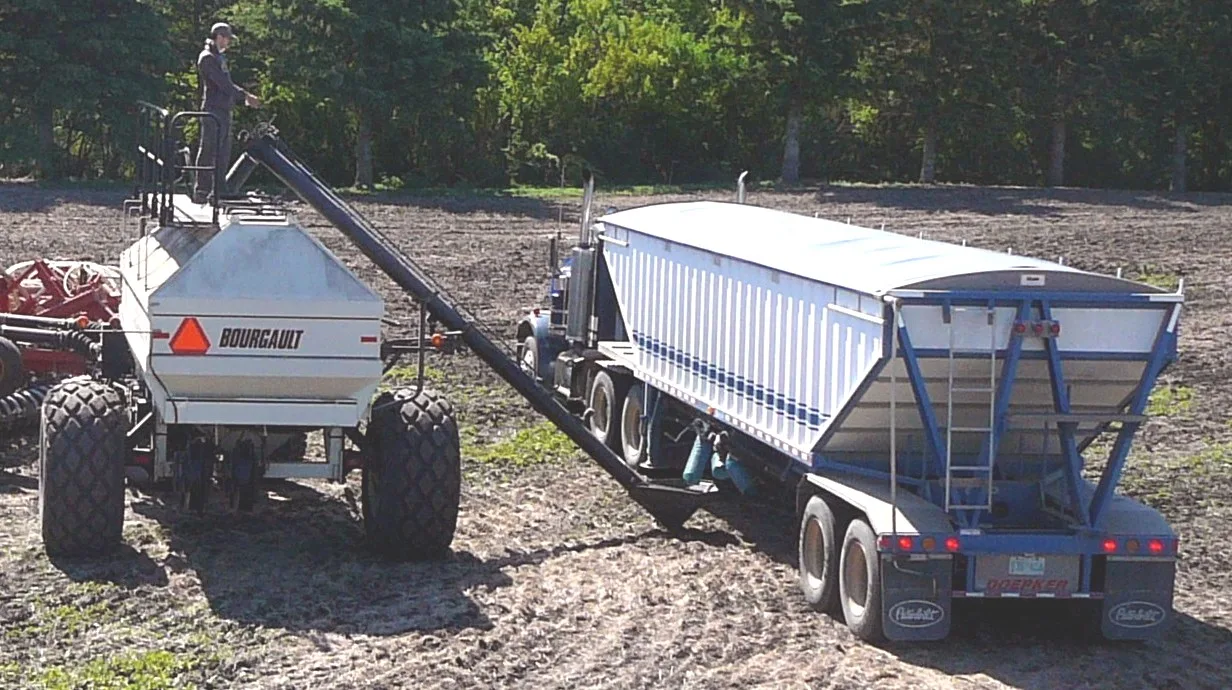

Hopper Auger

"ONE MAN- ONE STOP-NO MOVING"



HAmain

ALUMINUM OR STEEL SYSTEMS AVAILABLE IN 8" OR 10" MODELS FOR 1, 2, OR 3 HOPPER TRAILERS. WIRELESS REMOTE ALSO AVAILABLE

HA2hopperHA3hopper

2 Hopper System .........................................................................................................................................................3 Hopper System

- The Hopper Augers are easily detached by removing 5 bolts. The trap door can be opened to allow for easy unloading at the elevator
- This system can also be used as a tranfer auger in the fall
- Augers com with centre delivery, enabling delivery of two or more products in one step.
- One 8" Hopper Auger will keep a 10" Air-Seeder Auger full.
- Unloading with both 8" Hopper Augers will keep up to a 10" swing auger, or 80 bushels per minute
- Unloading with both 10" Hopper Augers will keep up to a 13" swing auger, or 140 bushels per minute
-15 GPM with a 2500 p.s.i. by-pass and a 25 gallon reservoir are the min. hydraulic requirements
-A 5.9 cubic inch hydraulic motor comes with a flow control valve to regulate speed. The hydraulic motor can be powered by adding into the loop of the existing hydraulic line on the air-seeder, or by a hydraiulic unit on the semi trailer unit.

clean outgear boxHATransfer

.............................Trap Door......................................................Gear Box...................................................Used as aTransfer Auger



HAremote

................................................................................................Wireless Remote
  • John Deere
  • New Holland
  • Case
  • AGCO

HP

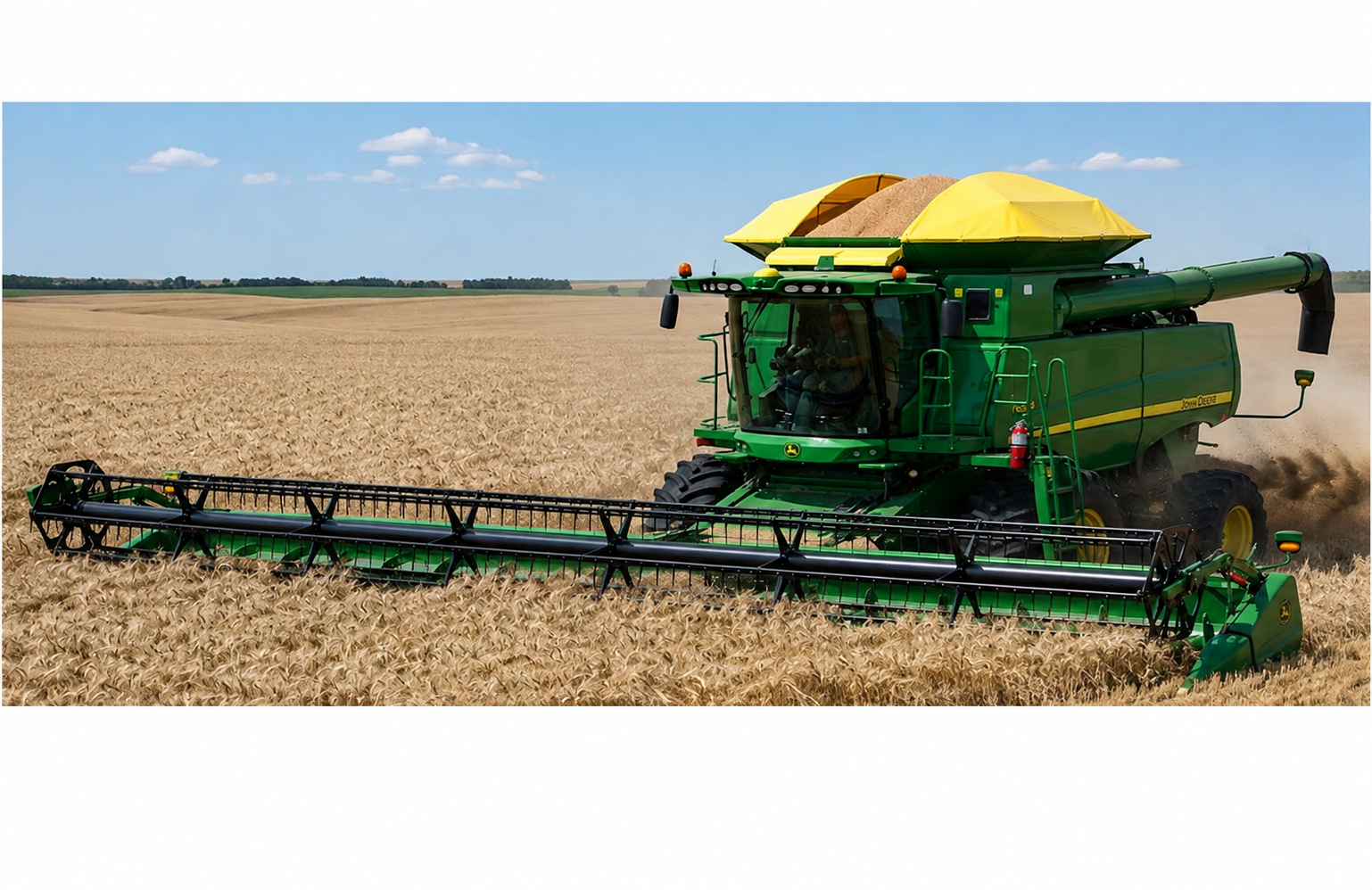

ELECTRIC COMBINE HOPPER COVER

HPmain

HPhoodHP endcap removal

Tension Control & Front Roll Tube Assembly
- The front roll tube assembly works together with electric drive to provide tension for opening and closing the tarp
Removeable Hoods & Clamps
- Two interlocking hoods are designed for easy removal.
- Hoods are molded from high density plastic and are available in yellow or green.
- Specially designed hood clamps are used to attach hoods (no drilling required).

Tarp fabricHP electricalHp switch

Cross Members and Tarp Fabric
- Tarp fabric is manufactured from 19 oz. PVC
- Specially designed cross members are sewn into tarp fabric for added support
- Specially molded track on hoods seal moisture out when tarp is closed
Electrical Assembly & Switch
- A 12V DC motor is a standard feature on allcombine covers.
- The motor and roll rube assembly is easy to remove.
- The switch is mounted outside the cab

HPHoodsHpbreakdown

Features:
- Hoods are equiped with two handgrips
- Tarp components can easily be removed down to extension height in less than 10 minutes
- Dome shaped hoods enable grain tank to be filled to maximum capacity
Tarp Components Can Be Stored Inside The Grain Tank
- Hoods have extended corners to shield rain from entering the hopper corners
- Majority of metal components are manufactured from aluminum to reduce weight.



Available for John Deere: 2012 Models S660,S670,S680,S690 with Manual Fold Extensions
Also Available for the 60 & 70 Series STS with HUR and Factory Extensions
9660,9760, 9860 - 9670, 9770, 9870
50 & 60 Series STS with Maurer Extensions
60 & 70 Series STS with HUR and Crary Big Top Extensions
9500,9600, 9510, 9610 with Generation II Maurer Extensions
All CTS Models with Generation II Maurer Extensions

HP

ELECTRIC COMBINE HOPPER COVER FOR CR AND CX NEW HOLLAND COMBINES

NHmainNHOpen

NH Cx





NH closed

All components are easily removed in minutes



NH closedNH switchNH electric

Tension Control & Front Roll Tube Assembly
- Front roll tiube assembly works together with electric drive to provide tension for opening and closing the tarp system



Electrical Assembly & Rocker Switch
- A 12V DC motor is a standard feature on all Harvest Pro-Tech systems
-The rocker switch is mounted outside the cab door

NHcrossmemberNH knobsNHremoveable hood

Cross Members and Tarp Fabric
- Tarp Fabric is 19 oz. PVC
- Specially engineered cross members are sewn into the tarp fabric for added support
- Specially molded track on hoods seals moisture out while tarp is closed



Removable Hoodsa and clamps
- Hoods are molded from high density plastic
- Specially designed hood clamps are used so no drilling is required for attaching the hoods



NH breakdownNH features

Features
- Tarp components can easily be removed down to extension height in less than 10 minutes
- End-caps are equipped with two handgrips for easy handling
- Grain tank can be filled to maximum capacity because of special dome style hoods
- Breakdown of tarp components fit inside of the grain tank. No wrenches required
- Extended rounded corners on hood assembly helps shield rain from entering hopper corners
- The majority of components are made from aluminum to reduce weight



Available for Models:
CR 940,960,970,9040,9060,9070,9080
CR (970,9070,9080) c/w CRARY BIG TOP Extensions
CX 840(2010), 860,8040,8070(2010),8080,8090

HP



ELECTRIC COMBINE HOPPER COVER

HP Case IH main

All components remove easily in a matter of minutes

New HollandNHremoveable hoodNH knobs

Tension Control & Front Roll Tube Assembly
- Front roll ybe assembly works together with the electric drive to provide tension for opening and closing the tarp system



Removable Hoods and Clamps
- Two interlocking hoods are designed for easy removal
- Hoods are molded from high density plastic
- Specially designed hood clamps are used to attach hoods. No drilling required



HPCase cross membersHP Case ElectricalHPCase switch

Cross Member and Tarp Fabric
- Tarp fabric is manufactured from 19 oz. PVC
- Specially engineered cross members are sewn into the tarp fabric for added support
- Special molded track on hoods seal moisture out when tarp system is closed



Electrical Assembly
- A 12V DC motor is a standard feature on all tarp systems
- The roll tube is easily removed
- The electric switch is mounted outside of the cab for easy access



Case Handgripscase breakdown

Features
- Hoods are equiped with handgrips for easy handling
- Tarp components can be removed down to extension height in less than 10 minutes
- Grain tank can be filled to maximum capacity because of dome style hoods
- No wrenches required o breakdown tarp components for storage
- Extended round corners on the hood assembly helps to shield the corners from rain
- Majority of metal components are manufactured from aluminum to reduce weight



Available for CAse I.H. Models:
AFX (9010,8010,7010,7120,8120,9120,7230,8230,9230) c/w FACTORY Extentions
AFX (9010,8010,8120,9120,7230,8230,9230) c/w CRARY BIG TOP Extensions
(2388,2188,1688,16800 c/w Standard MAURER Extensions

HP

Electric Combine Hopper Cover



Agco Main

All components are easily removed in minutes



Case openCase hoodscase hood clamp

Tension Control and front Roll Tube Assembly
- Front roll tube assembly works together with electric drive to provide tension for opening and closing the tarp system



Removable Hoods and Clamps
- Two interlocking hoods are designed for easy removal
- Hoods are molded from high density plastic
- Specially designed hood clamps are used to attach hoods



case cross memberscase electriccase switch

Cross members and Tarp Fabric
- Tarp fabric is manufactured using 19 oz PVC
- Specially designed cross members are sewn into tarp fabric for added support
- Specially molded trck on hoods seal moisture out when tarp is closed



Electrical Assembly & Switch
- A 12V DC motor is a standard feature on all "Harvest Protech" Covers
- The motor and roll tube assembly is easy to remove
- The switch is mounted outside the cab



case hood storagecase shrowd

Features
- Hoods are equiped with two handgrips
- Tarp components can easily be removed down to extension height in less than 10 minutes
- Dome shaped hoods enable grain tank to be filled to a maximum capacity
- Tarp components can be stored inside grain tank
- Majority of metal components are manufactured from aluminum to reduce weight
= Specially designed 3 piece auger sgroud prevents water infiltration



Available For:
Massey Ferguson: 9795 (300 or 350 Bushel), 9895( 350 Bushel)
Gleaner: A76 (300 or 350 Bushel), A85 & A86 (350 Bushel
Challenger: 670 (300 or 350 Bushel), 680B (350 Bushel)
This page is coming soon.

CClogo

Money in your hands, not on the ground!! Available for all models!!



CCJDCCCase



CCcasedownCC vision

All Crop Catchers are adjustable and can be folded back when not in use
Can be set to preferred position
SAVEup to 1/4 bushel or more per acre on canola
U.V. scratch resistant marguard glass used so no vision impairment
Never clean your Feeder house again!

Watch the video here and see just how effective it can be.

Michel's Industries Ltd.
P.O. Box 119, #3 Entrance Road
St. Gregor, Sk., Canada S0K 3X0
Phone - 306.366.2184
Fax - 306.366.2145
Email - sales@michels.ca
